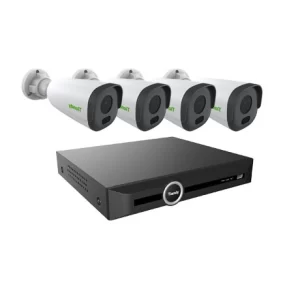

Tiandy NVR 4 Channel + 4 * 2.0 MP IP Camera

Includes

  • Tiandy NVR 4 Channels
  • Tiandy 4x 2.0 MP Cameras
SKU: TIANDYNVR4+4*2MP

199.00

View cart

Description

SPECIFICATIONS
Camera
Image Sensor 1/2.9″ CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range Digital WDR
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, roate 0~360°
Lens
Lens Type Fixed
Focus 4mm
Lens Mount M12
Aperture F2.0, Fixed
FOV Horizontal field of view: 82.1°
Illuminator
IR LEDs 2
IR Range Up to 50 m
Wavelength 850nm
White LEDs N/A
Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32 Kbps to 6 Mbps
Audio Compression N/A
Audio Bit Rate N/A
Max. Resolution 1920×1080
Main Stream
PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480)
NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream N/A
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI N/A
OSD 16×16, 32×32, 48×48, adaptable size, Letters Such as Week, Date, Time, Total 1 Regions
Picture Overlay Yes
Privace Mask Yes
Smart Defog Yes
Feature
Alarm Trigger Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL
TC-C32JN SPEC:I5/E/4MM
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Video Abnormal
Early Warning(EW) N/A
Intelligent Coding Yes
Intelligent Image Yes
Intelligent Alarm Yes
Network
ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when
resumed connection (Only Support Tiandy ANR NVR)
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP,
SMTP, IGMP, 802.1x, QoS, Multicast
System Compatibility ONVIF (PROFILE S/T), SDK, CGI, P2P
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web6
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio N/A
Alarm N/A
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 128 GB
General
Firmware Version –
Web Client Language
15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai,
French, Polish, Dutch, Hebraism, Farsi, Arabic
Operating Conditions -35 ~65 , 0~95% RH
Power Supply DC12V±25%/PoE
Power Consumption MAX: 5W (12V) MAX: 6W (POE)
Protection IP67
Heater N/A
Dimensions 189 70 70mm (7.44 2.76 2.76 inch)
Weight 0.45Kg (0.99)

Additional information

Installation

No +€0, Yes +€95
