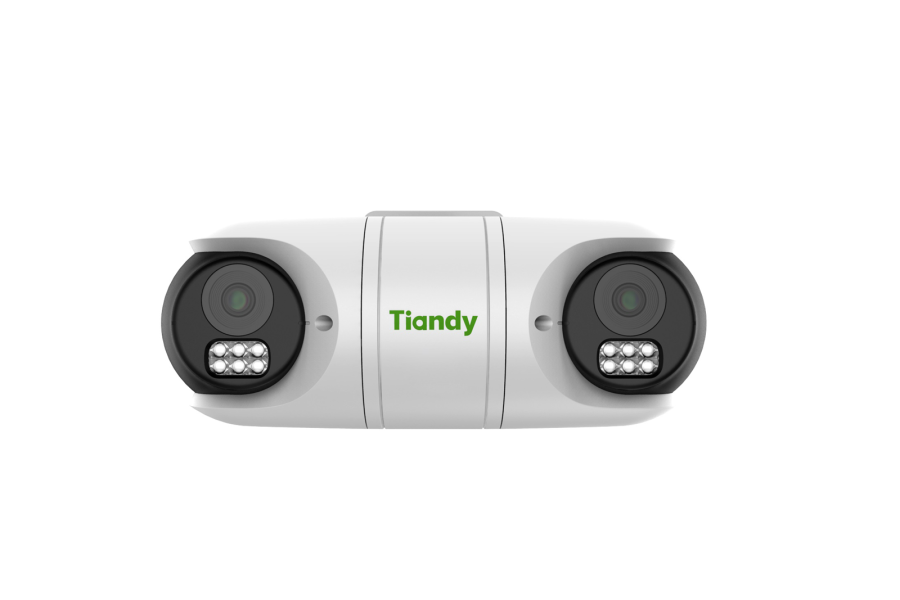

2MP Dual TC-C32RN Turret I5/E/Y/QX/2.8mm/
• Up to 1920X1080@30fps
• S+265,H.265,H.264 HP/MP/BP, S+H.264 HP/MP/B, M-JPEG
• Min. Illumination Color: 0.05 Lux,B/W: 0.01Lux,0 Lux with IR
• Smart IR, IR Range: 30m
• Operating Conditions -35℃～60℃(IR OFF) /-30℃～40℃(IR ON), 0～95% RHG
• Motion Detection/IP Conflict/MAC Conflict/Mask Alarm
• DC 12 V ± 25% PoE
• IP67
€89.00
- Description
- Additional information
Description
| Date | Title | Type | Download |
|---|---|---|---|
| 2023-09-15 | TC-C32RN SpecI5EYQX2.8mmV4.2 |  |
-
Camera Image Sensor 1/3″CMOS Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR Shutter Time 1s-1/100000s Day&Night IR-cut filter with auto switch (ICR) WDR DWDR S/N >36dB Angle Adjustment 0-350°;0-90°;0-360° Lens Lens Type Fixed Focal Length 2.8mm Lens Mount M12 Aperture Range F1.6,Fixed Field of View 93.9°(H);51.2°(V);107°(D) DORI Distance Detect:42.26m
Observe:16.77m
Recognize:8.45m
Identify:4.23mIlluminator IR LEDs 6 IR Distance 50m Wavelength 850nm White LEDs N/A Whitelight Distance N/A Compression Standard Video Compression S+265/H.265/H.264B/H.264M/H.264H Video Bit Rate 32k-4Mbps Audio Compression G.711A/G.711U Audio Sampling Rate 8kHz/16kHz Image Max. Resolution 1920×1080@30fps Main Stream PAL:
25fps(1920×1080,1280×720,640×480,704×576)
NTSC:
30fps(1920×1080,1280×720,640×480,704×480)Sub Stream PAL:25fps(704×576,704×288,640×360,352×288)
NTSC:30fps(704×480,704×240,640×360,352×240)Third Stream N/A BLC Yes HLC Yes AGC Yes 3D DNR Yes White Balance Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance ROI N/A Corridor mode N/A EIS N/A OSD 1region;16*16/32*32/48*48 Picture Overlay N/A Privacy Mask 4 regions Defog Yes Feature Alarm Trigger Motion Detection;IP Address Conflict Linkage Method trigger
captureVideo Analytics N/A Rules of behavior analyse in 1 scene N/A Early Warning(EW) N/A Auto-Tracking N/A Face Mode N/A Face Detection Performance N/A Network ANR N/A Protocols HTTP;TCP/IP;UDP;ICMP;DHCP;DNS;NTP;IPv4;SSH;Unicast;RTSP;FTP System Compatibility P2P(Mutually exclusive with Profile G);onvif Profile S/T;CGI;MIL STONE Remote Connection ≤2 Client Easy7 Smart Client Moblie Client EasyLive Plus Web IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ Interface Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port Audio I/O N/A Alarm I/O N/A Built-In Mic Yes Built-In Speaker N/A Reset Button N/A On-board storage N/A Additional interfaces N/A General Web Client Language 18languages
Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/PortugueseOperating Temperature -30℃-60℃ Operating Humidity 0-95% Storage Temperature -30℃-60℃ Storage Humidity 0-95%(non-condensing) Power Supply DC12V±25%,MAX 7.5W;POE 802.3af,MAX 8.5W Protection Surge protection 2000V;Lightning proof 6000V;IP67 Boundary Dimensions 260(L)133(W)115(H)mm Package Dimensions 315(L)145(W)140(H)mm GrossWeight 0.87kg NetWeight 0.67kg
