-59%

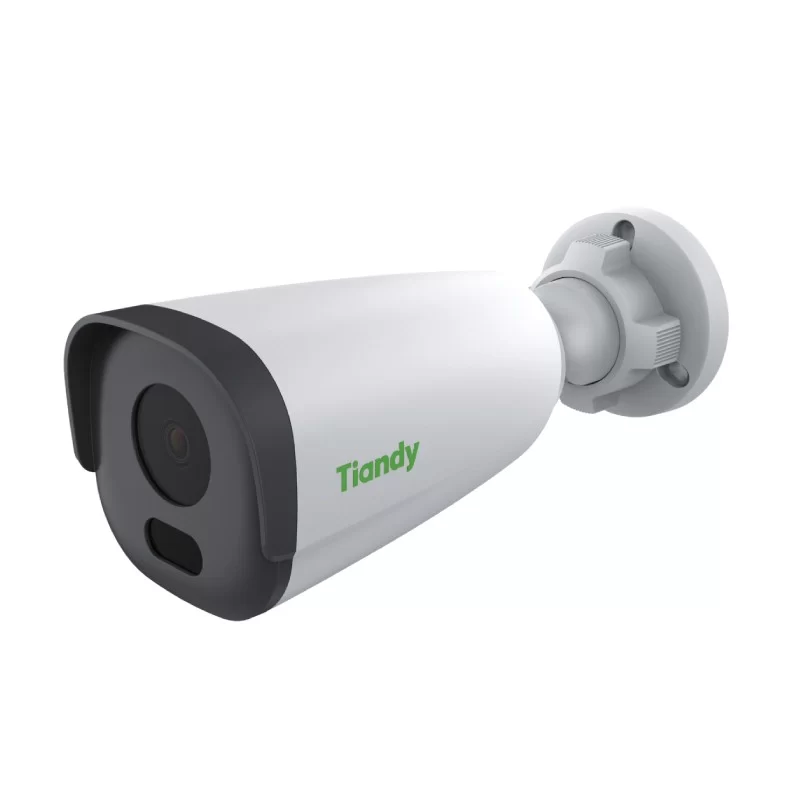

2MP Fixed TC-NCL214 IR Bullet Camera 4mm
• Lite series 2mp mini bullet camera
• Up to 1920X1080@30fps
• S+265,H.265,H.264 HP/MP/BP, S+H.264 HP/MP/B, M-JPEG
• Min. Illumination Color: 0.05 Lux,B/W: 0.01Lux,0 Lux with IR
• Smart IR, IR Range: 30m
• Operating Conditions -35℃～60℃(IR OFF) /-30℃～40℃(IR ON), 0～95% RHG
• Motion Detection/IP Conflict/MAC Conflict/Mask Alarm
• DC 12 V ± 25% PoE
• IP67
€49.00
- Description
- Additional information
Description
-
Specification
Camera Image Sensor 1/2.7″ CMOS Core Processor ARM9 Architecture Operating System Embedded Linux Signal System PAL/NTSC Min. Illumination Color: 0.05Lux B/W: 0.01Lux Shutter Time 1s to 1/100,000s Lens 2.8mm Wide Dynamic Range 100db Digital Noise Reduction 3D DNR Compression Standard Video Compression S+265、H.265、H.264 HP/MP/BP 、S+H.264 HP/MP/BP、M-JPEG Video Bit Rate 32K~16Mbps Image Max. Image Resolution 1920×1080 Frame Rate PAL：1080p@25fps，960p@25fps，720p@25fps，D1@25fps NTSC：1080p@30fps，960p@30fps，720p@30fps，D1@30fps Triple Stream Mainstream:1080P(1920*1080) Substream:4CIF（704×480） third strem: CIF (352*240) HLC Y Smart Defog Y OSD 16×16, 32×32, 48×48, 64×64, Size Letters Such as Week, Date, Time, Total 5 Regions Network Video Analytics Tripwire/Perimeter Browser built-in web server NTP Y Alarm Trigger Motion Detection/IP Conflict/MAC Conflict/Mask Alarm Protocols TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/DDNS/NFS/FTP/NTP/RTP/RTSP/SMTP User Permission 4 Level/8 Users System Compatibility ONVIF (Profile S) ,P2P Interface Audio Input N/A Audio Output N/A Communication Interface 1-ch RJ45 10M / 100M Ethernet Interface Alarm Input N/A Alarm Output N/A Video Output N/A General Language English,Simplified Chinese,Traditional Chinese,Spanish, Italian, Korean, Turkish, Russian, Thai, polish, French Operating Conditions -35℃～60℃, 0～95% RHG Power Supply DC 12 V ± 25% PoE Power Consumption Max. 2.8875W(IR OFF) (ICR Instant Switch 2.75W) Impact Protection IP67 IR Range 30m Dimensions 208mm（longth）×82mm（width）×81mm（height） Weight 0.5KG
