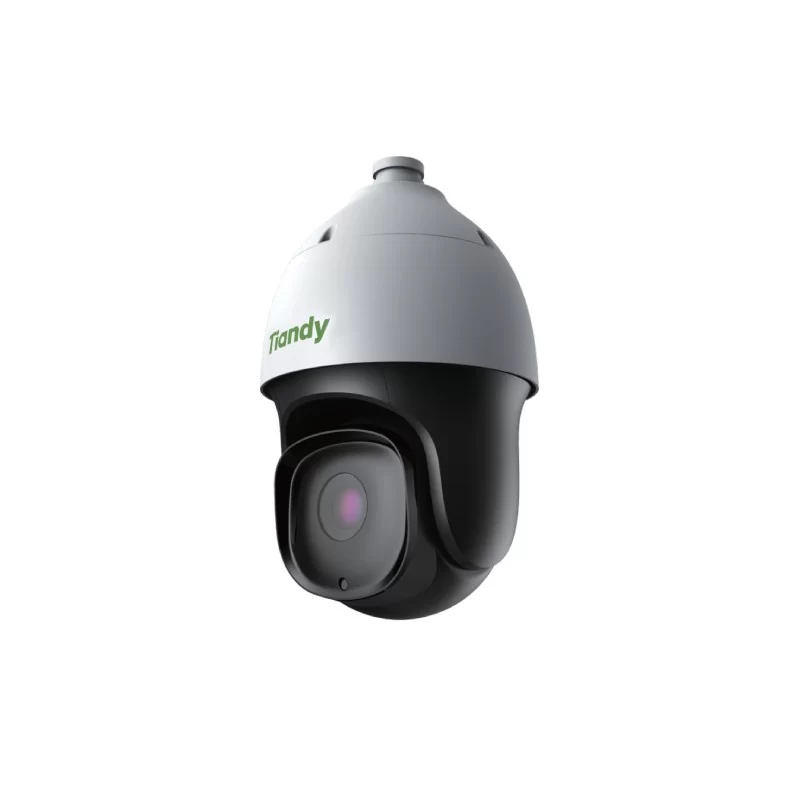

2MP 20× Starlight IR PTZ TC-NH6220IE-CP-V2.0
Up to 1920X1080@30fps
· 0.001Lux@F1.5
· Optical zoom: 20×, digital zoom 16×
· Smart IR, IR Range: 120m
€920.00
- Description
- Additional information
Description
Date | Title | Type | Download |
---|---|---|---|
2021-06-23 | TC-NH6220IE-CP-V2.0 |
Camera | |
Image Sensor | 1/2.8″ CMOS |
Signal System | PAL/NTSC |
Min. Illumination | Color: 0.001lux@ (F1.5, ACG ON), BW: 0lux with IR |
Shutter Time | 1s to 1/100,000s |
Day & Night | Dual IR Cut Filter |
Wide Dynamic Range | 140dB |
Optical Zoom | 20× |
Digital Zoom | 16× |
Lens | |
Focal Length | 4.7mm~94mm |
Zoom Speed | <4s |
Angle of View | Horizontal filed of view: 55.8° (w)~3.2° (t) |
Aperture Range | F1.5~F3.0 |
Pan&Tilt | |
Pan Range | 360° |
Pan Speed | Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s |
Tilt Range | -16°~90° (Auto flip) |
Tilt Speed | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s |
3D Position | Yes |
Presets | 500 |
Preset Accuracy | ±0.4° |
Scan | 8 |
Cruise | 16, up to 32 presets per cruise |
Pattern | 8, each with 600s memory or 1000 orders |
Power-off Memory | Yes |
RS-485 Protocols | N/A |
Illuminator | |
IR LEDs | 4 |
IR Range | Up to 120m |
IR Irradiation Angle | Adjustable by Zoom |
White LEDs | N/A |
Compression Standard | |
Video Compression | S+265/H.265/H.264/M-JPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
Audio Compression | G.711A/G.711U/ADPCM/AAC |
Audio Bit Rate | 8K~48Kbps |
Image | |
Max. Resolution | 1920×1080 |
Main Stream | PAL: 25fps (1920×1080, 1280×960), 50fps (1280×720) |
NTSC: 30fps (1920×1080, 1280×960), 60fps (1280×720) | |
Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
Third Stream | PAL: 25fps (352×288) NTSC: 30fps (352×240) |
Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image Enhancement | BLC/3D DNR/HLC |
ROI | 7 Dynamic Areas for Both Main and Sub Stream |
OSD | 16×16, 24×24,32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
Picture Overlay | Yes |
Privace Mask | Yes |
Smart Defog | Yes |
Feature | |
Alarm Trigger | Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection |
Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Video Abnormal, Audio Abnormal, Heatmap |
Early Warning(EW) | N/A |
Auto-Tracking | N/A |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE |
System Compatibility | ONVIF (PROFILE S), SDK, CGI, P2P |
ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
Remote Connection | ≤7 |
Client | Easy7, EasyLive |
Web Version | Web5 |
Interface | |
Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
Audio | 1/1 |
Alarm | 1/1 |
Reset Button | Yes |
On-board storage | Built-in MicroSD card slot, up to 128 GB |
RS-485 | N/A |
BNC | N/A |
General | |
Firmware Version | NVSS_V14.0.6.20190328 |
Web Client Language | 11 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish |
Operating Conditions | -30°~65°C, 0-95% RH |
Power Supply | DC12V±10%/POE+ |
Power Consumption | 13W (IR OFF), 22W (IR ON) |
Protection | IP66 |
Heater | N/A |
Dimensions | Φ222×372 mm (Φ8.74×14.65 inch) |
Weight | 5kg (11.02lb) |
