Description

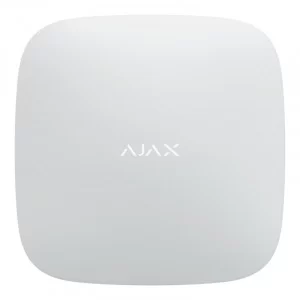

Compatibility with Control panels and Range Extenders
- Hub 2 (2G)
- Hub 2 (4G)
- Hub 2 Plus
- Hub Hybrid (2G)
- Hub Hybrid (4G)
- ReX 2

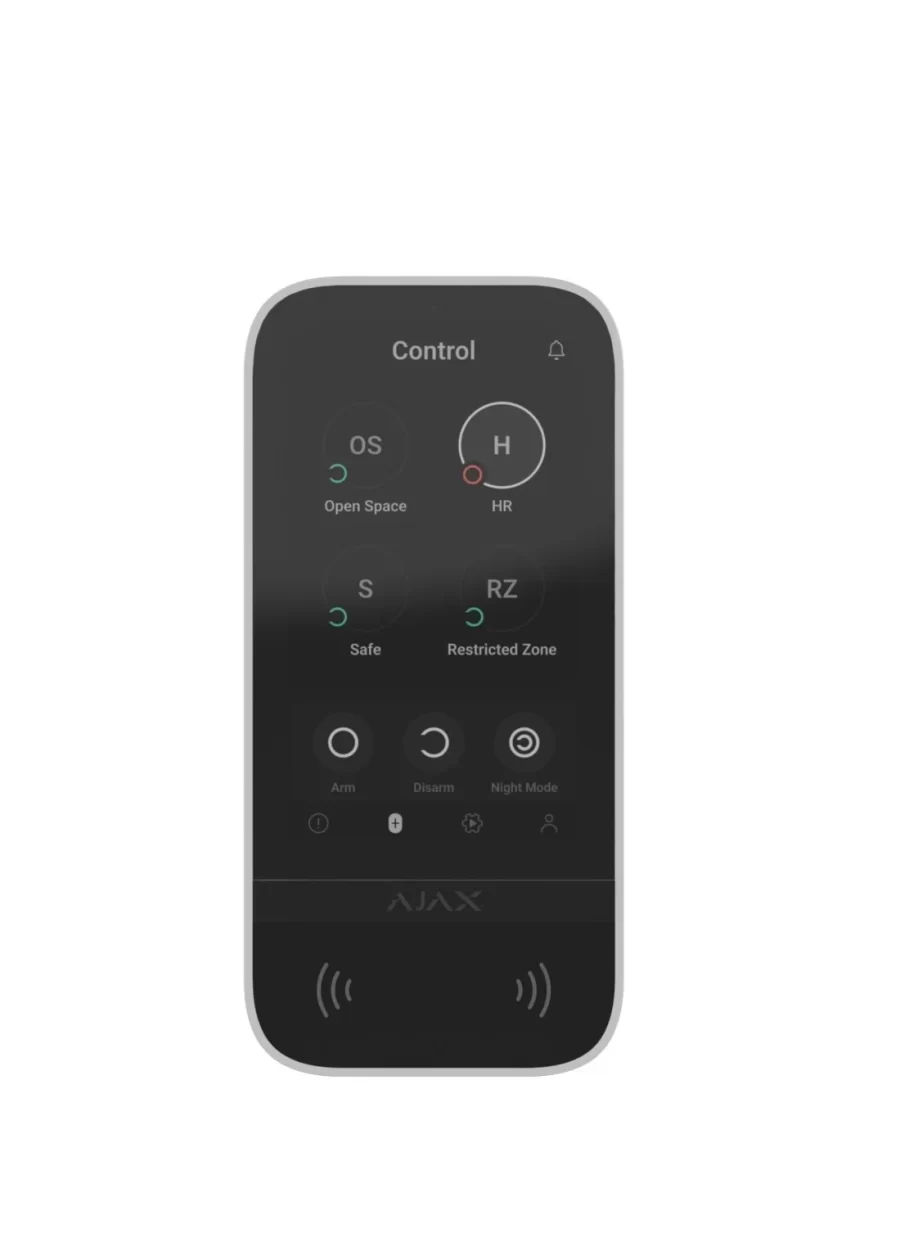

Display
- Diagonal : 5″
- Matrix type : IPS
- Resolution : 480 × 854 px
- Sensor : capacitive
- Brightness settings : automatic / manual
- Backlight lifetime : 30,000 hours / Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected
Key features
- Panic buttons : panic / fire / auxiliary help / Sending an alarm or calling for help from the separate keypad tab
- Control : codes / Tag key fobs / Pass cards / smartphone (Bluetooth)
- Contactless access : DESFire® EV1, EV2 / ISO14443-А (13.56 MHz)
- Access codes : up to 200 personal codes / One code per each user. The number of personal access codes depends on the hub model / 1 keypad code Per each KeyPad TouchScreen
- Duress codes : up to 200 personal codes / One code per each user. The number of personal duress codes depends on the hub model / 1 keypad code Per each KeyPad TouchScreen
- Codes for unregistered people : up to 99 personal codes / For people who are not registered in the Ajax system. The number of such codes depends on the hub model
- Arming without entering a code : The enabled feature allows the user to arm the system without entering a code or presenting the access device
- Group management : Changing the security mode of the groups to which the user has access from the keypad’s display
- Scenarios management : A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices
- Indication of malfunctions and security mode : display / logo / sound indication / If enabled, the logo lights up red continuously or when the system or group is armed. KeyPad TouchScreen indication is shown on the display only when it is active. Built-in buzzer notifies about alarms, door openings and entry/exit delays.
- Fire alarm muting : Turns off the fire detectors alarm, including the interconnected alarm
- User pre-authorization : When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad
- Contactless authorization with a smartphone : A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher
- Auto screen wakeup : The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app
Sabotage protection
- Unauthorized access auto-lock : The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app
- Tamper alarm : Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel
- Holding screw : To secure the keypad on SmartBracket
- Protection against spoofing : device authentication
- Communication loss detection : after 36 s / Detection time depends on the Jeweller or Jeweller/Fibra settings
Power supply
- Batteries : 6 × AA Pre-installed
- Calculated battery life : up to 1.5 years / With default settings and up to 4 interactions with a keypad per day
- Keypad’s operating voltage range : 10.5–14 V⎓, up to 0.4 A / The batteries serve as a backup when the external power supply is connected.
- Keypad’s nominal operating voltage : 12 V⎓
Enclosure
- Dimensions : 172 × 82 × 26 mm
- Weight : 327 g
- Operating temperature range : from -10°C to +40°C
- Operating humidity : up to 75%
