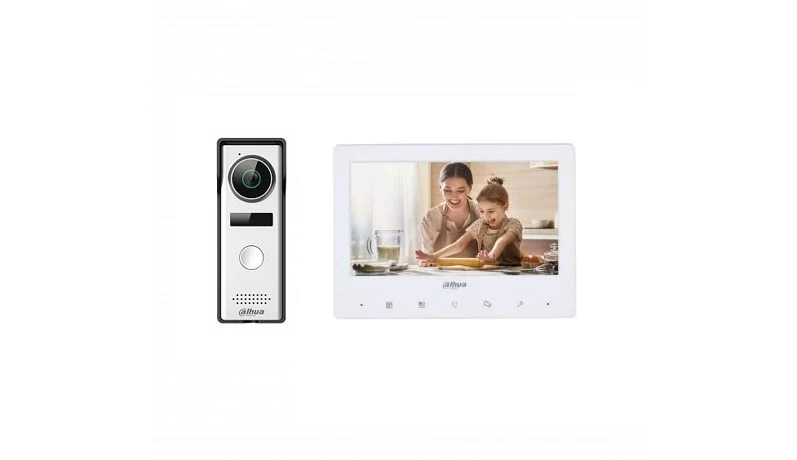

Dahua VD Analog Doorphone KIT KTA02

Dahua VD Analog Doorphone KIT KTA02

  • 7″ TFT screen
  • Video intercom function: Unlock, voice call, video call, volume adjustment
  • System Capacity:2 door stations + 3 indoor monitors
  • Multiple bell sounds
  • Supports digital wide dynamic range (DWDR)
Product ID: KTA02

238.00

  • Description
  • Additional information

Description

VTH1020J

  • Button Type : Touch button

Basic

  • Display : 7.0″ TFT
  • Screen Resolution : 1024 × 600
  • Status Indicator : 1 indicator light
  • Green : Power on

Function

  • Communication Mode : Analog

Performance

  • Casing : PC + ABS

General

  • Color : White
  • Power Supply : DC 12V/2A
  • Power Adapter : Included
  • Installation : Surface mount
  • Certifications : CE/FCC
  • Accessory : Bracket (included)
  • Dimensions : 133.90 mm × 182.70 mm × 17.70 mm
  • Operating Temperature : -10°C to +55°C
  • Operating Humidity : 10%RH–95%RH
  • Power Consumption : ≤ 2W (standby) / ≤ 5W (working)
  • Net Weight : 0.25 kg
  • Gross Weight : 0.48 kg

VTO1000J

  • Button Type : Mechanical

Basic

  • Camera : 1.3MP CMOS
  • Field of View : Horizontal: 70° / Vertical: 40°
  • WDR : DWDR
  • Illuminator Type : Auto IR
  • Day/Night
  • ICR auto switch
  • Audio Input : 1 channel to the microphone; pickup distance 0.5 m
  • Audio Output : 1 channel to the speaker
  • Status Indicator : 1 indicator light
  • Green : Power on

Function

  • Communication Mode : Analog
  • Unlock Mode : Local unlock

Performance

  • Casing : PC + ABS

Port

  • Exit Button : 1
  • Door Status Detection : 1

General

  • Color : Silver
  • Power Supply : Powered by indoor monitor
  • Installation : Surface mount
  • Certifications : CE/FCC
  • Accessory : Rain cover (included)
  • Dimensions : 131.45 mm × 46.00 mm × 33.80 mm
  • Protection Grade : IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
  • Operating Temperature : -30°C to +60°C
  • Operating Humidity : 10%RH–95%RH
  • Power Consumption : ≤ 1W (standby) / ≤ 3W (working)
  • Net Weight : 0.18 kg

Additional information

Installation

No +€0, Yes Without Wires +€120, Yes With Wires €180
