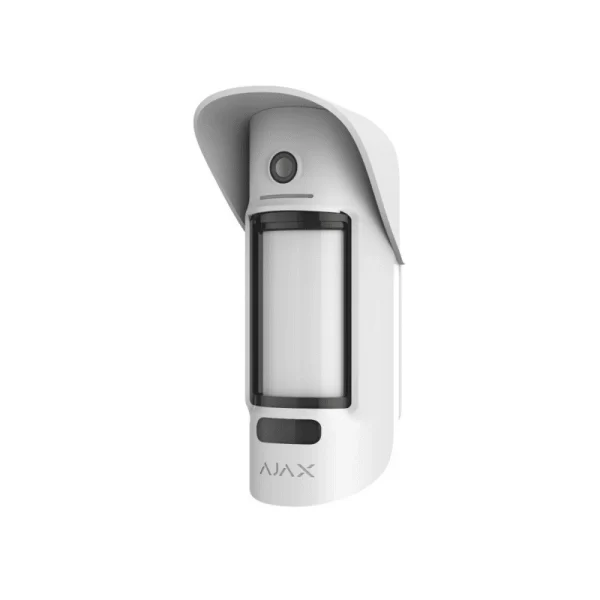

AJAX PIR Motion Cam Outdoor

SKU: MotionCamOutdoor

389.00

Description

Lightning-fast alarms Verified

  • MotionCam Outdoor recognizes intrusion from the very first steps on the territory and confirms it with an animated series of photos. Visual verification helps to instantly ascertain the situation, saving users from concerns, and security companies from unnecessary patrol dispatches

Don’t miss a thing

  • Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night

Intelligent false alarm filter

  • MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which helps to instantly distinguish real threats from interferences

Multilevel anti-sabotage protection

  • MotionCam Outdoor can not be unnoticeably disabled even if the system is disarmed. The detector is equipped with masking sensors reacting to hindering, covering and painting the lens
  • It will take the hub less than a minute1 to detect the loss of communication with the detector and inform a central monitoring station and users about the problem. The fact that MotionCam Outdoor was dismantled will become known instantly

Effective security in any weather

  • MotionCam Outdoor resists the heat up to +60°С and withstand the cold down to −25°С. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood

Uncompromising communication reliability

  • MotionCam Outdoor uses two secure radio protocols simultaneously: Jeweller and Wings. Radio protocols work independently of each other and each is focused on its own function. Jeweller transmits alarms in 0.15 seconds, and thanks to Wings, the first shot from the site will be in the app in less than 9 seconds2
  • The radio signal range is sufficient to install the detector where it will be most effective. And up to 3 years of battery life minimizes maintenance efforts
  • Classification : Electro-optical radio channel security detector
  • Type of detector : Wireless
  • Installation method : Outdoors / indoors
  • Recommended installation height : 0.8 – 1.3 m
  • Compatibility : Hub 2, Hub 2 Plus
  • Not compatible with ReX radio signal range extender
  • Sensing element : 2 × PIR sensor
  • Motion detection distance : Adjustable, from 3 to 15 m
  • Pet immunity ; Animals up to 80 cm tall
  • Sensitivity : Adjustable, 3 levels
  • Motion detector’s viewing angle : Horizontal — 90° / Vertical — 80°
  • Camera’s angle : Horizontal — 105° / Vertical — 50°
  • TV distortion (EBU standard) : Barrel, –17%
  • Photo in case of alarm : Photo resolution: 320 × 176 pixels (by default) / 640 × 352 pixels / Shooting series up to 5 photos
  • Infrared light for shooting in the dark : Available
  • Power supply : 4 × CR123A batteries
  • Supply voltage : 3 V
  • Battery life : Up to 3 years (up to 2.5 years if “Delay when entering” setting is activated)
  • Jeweller radio technology : Communication range with a hub — up to 1,700 m in an open space / Two-way communication between hub and device / Operating frequencies — 868.0–868.6 MHz3 / Self-adjusting RF output power — up to 20 mW / Block encryption with a dynamic key / Detector polling period — 12–300 s / Frequency hopping
  • Alarm delivery time : 0.15 s
  • Wings radio technology : Transmission of a series of photos / Photo delivery time with a default settings: up to 9 seconds
  • Temperature sensor : Available
  • Operating temperature range : From –25°С to +60°С
  • Operating humidity : Up to 95%
  • Protection class : IP55
  • Anti-sabotage : Anti-masking / Protection against forgery / Jamming detection / Tamper-resistant
  • Remote configuration and testing : Available
  • CMS compatibility : CMS connectivity: Contact ID, SIA (DC-09) / CMS software supporting visual alarms verification
  • Dimensions : 206 × 108 × 93 mm
  • Weight : 470 g

Additional information

Installation

NO +€0, YES + €80
