Description

IXENGO L  io 24V swinging gate

Radio-controlled motor for new or existing swinging gates up to 4 metres and 400 kg each side. Max depth of hinge mounting – 15 cm.

Stoppers are integrated in the arm- no need for ground stoppers.

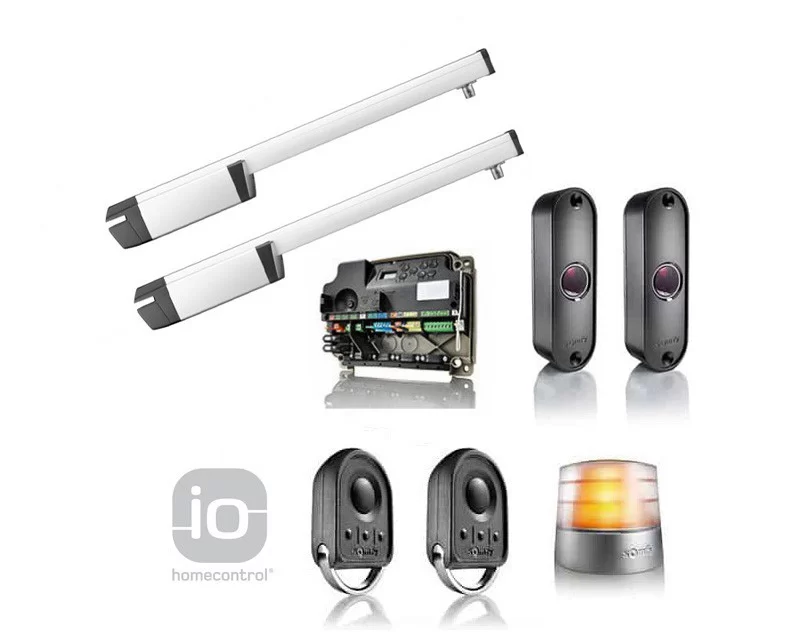

The kit contains:

• 2 x SOMFY IXENGO L 3S io 24V
• 2 x SOMFY Keygo io transmitter (4 channels)
• 1 x SOMFY 3S io control unit with receiver
• 1 x SOMFY Orange light with antenna
• 1 x pair of SOMFY safety photocells
• Mounting hardware
• Warranty (2 years)
• Operating instruction

Description:

• For metal and wooden gates.
• Silent operation.
• Manual release.
• Integrated magnetic stoppers.
• Compact solution.
• For gates up to 4 m and 400 kg.
• Built-in obstacle detection in accordance with the European standard.

Technical specification:

• Motor power supply: 24 Vdc
• Max. power: 40 W
• Max. consumption in use: 1,5A
• Max. number of operations/day: 60
• Number of remote controls that can be memorized: 38
• Protection class (motor): IP 44
• Operating temperature: -20°C +60°C
