Description

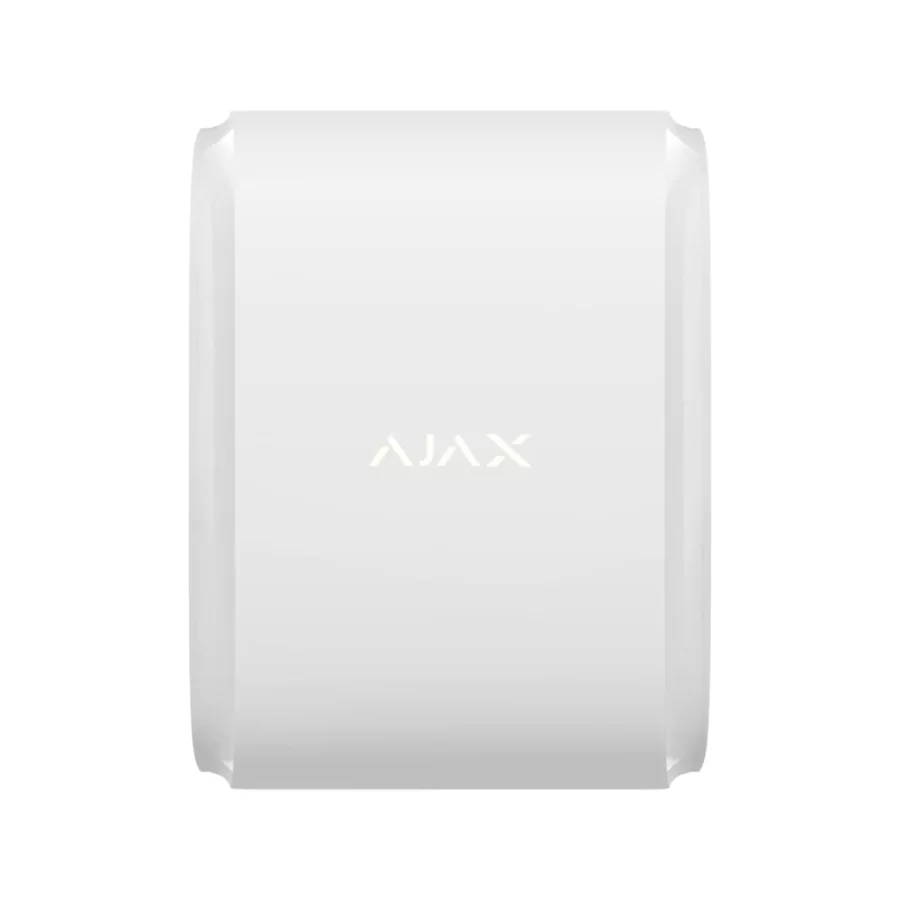

Classification : Electro-optical radio channel security detector
Type of detector : Wireless
Installation method : Indoors / outdoors
Compatibility : Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
Sensing element : 4 × PIR sensor
Motion detection distance : From 4 to 15 m (depending on settings) for each optical system
Protection against false alarms : Available
Alarm signal delivery time : 0.15 s
Detection angle : Horizontal — 6° / Vertical — depending on settings
Time for motion detection : From 0.3 to 2 m/s
Sensitivity : Adjustable, 3 levels
Power supply : 2 × CR123А batteries, 3 V
Battery life : Up to 4 years
Temperature sensor : Available
Jeweller radio technology : Communication range a control panel — up to 1,700 m in an open space / Two-way communication between devices / Operating frequencies — 868.0–868.6 MHz1 / Self-adjusting RF output power — up to 20 mW / Block encryption based on AES algorithm / Detector ping interval — 12−300 s / Frequency hopping
Operating temperature range : From −25°С to +60°С
Permissible humidity : Up to 95%
Protection class : IP54
Anti-sabotage : Protection against forgery
Jamming detection : Tamper-resistant
Dimensions : 174 × 123 × 88 mm
Weight : 615 g
Warranty : 24 months
Additional information
| Installation | NO +€0, YES + €80 |
|---|
